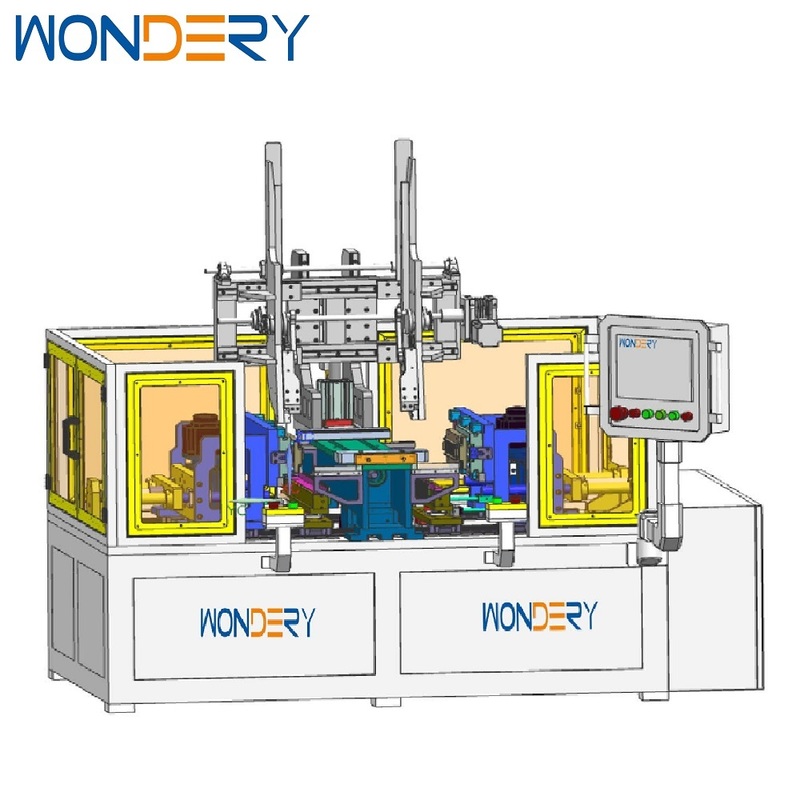

Intercooler Core Assembly Machine 220V PLC Control 1.5min Cycle

Name: Intercooler Core Assembly Machine 220V PLC Control 1.5min Cycle
Brand: Wuxi Wondery Industry Equipment Co., Ltd
Price: 243.00 USD
Availability: InStock

نام تجاری:	WONDERY
موق:	1
قیمت:	$240,000-246,500

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع:

جیانگسو ، چین

نوع ماشین:

هسته ساز

وزن:

2500 کیلوگرم

نیروی پیشران:

هیدرولیک ، پنوماتیک یا سروو

سیستم کنترل:

کنترل PLC

قدرت سیستم:

220 ولت ac

مارک PLC:

دلتا، تایوان

زمان مونتاژ:

1.5 دقیقه در هر هسته

اصل کار:

ساختار دندانهای شانه ؛ PLC کنترل شده ؛ وابسته به هیدرولیکی

اجزای اصلی:

موتور

نام ماشین:

دستگاه مونتاژ هسته نیمه اتوماتیک Intercooler

استفاده کردن:

باله ها ، لوله ها ، هدرها ، صفحات جانبی

قسمت کاربردی:

خط ساخت Intercooler برای صنعت خودرو یا سایر وسایل نقلیه

منبع تغذیه:

قابل تنظیم از طریق ترانسفورماتور

تنظیم ولتاژ:

ولتاژ مشتری به طور مستقیم

زمان تحویل:

30-60 روز پس از پرداخت پیش پرداخت

برجسته کردن:

220V PLC intercooler core machine,1.5min cycle intercooler assembly,PLC control radiator fin machine

1.5min cycle intercooler assembly

PLC control radiator fin machine

توضیحات محصول

Wondery Radiator Core Assembly Machine with Tube Distribution Silo

Product Overview

Radiator Core Assembly Machine with Tube Distribution Silo

Specification	Details
Place of Origin	China, Jiangsu
Brand Name	WONDERY
Machine Type	Core Builder
Marketing Type	New Product 2020
Warranty	1 Year
Core Components	Motor
After-sales Service	Engineers available to service machinery overseas

Technical Specifications

Machine Name: Intercooler Semi-automatic Core Assembly Machine
Use: To assemble the fins, tubes, headers, and side plates
Application Field: Intercooler making line for auto industry or other vehicles
Working Principle: Comb teeth structure; PLC controlled; hydraulic
Driving Force: Hydraulic, pneumatic or servo
Control System: PLC control
System Power: 220V AC
PLC Brand: Delta, Taiwan
Time for assembling 1 core: 1.5mins (depending on worker's skills)

About Wuxi Wondery Industry Equipment Co., Ltd.

Wuxi Wondery Industry Equipment Co., Ltd. is a professional supplier of industrial machines. Currently the company mainly supplies equipment for:

Automobile industry
Household air conditioner industry
Engineering vehicle industry
Power generation plant industry
Train industry
Ship industry

Our main products include:

Radiator making machines
Aluminum fin machine
Aluminum radiator core builder machine
Aluminum radiator plastic tank clinching machine
Aluminum radiator brazing furnace
Aluminum header pipe punching machine
Aluminum flat tube straightening and cutting machine
High speed fin press machine
Aluminum/copper pipe straightening and cutting machine
Tube expander machine
Automatic bending machine
Progressive fin die
Metal punching die

Established in 2008, we have gained rich experience in development and design, quality control, and after-sales service. We provide thoughtful services including technical consultation, installation and test-running, technical training, and maintenance. We can also design non-standard products as per customers' requests.

We have exported our machines to: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, and more.

Frequently Asked Questions

1. What is the power supply of the heat exchanger making machines?

The power supply of heat exchanger making machines is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the melting furnace is ready for use at the end user's site.

2. What information should the customer provide to get an accurate quotation from us?

The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.

3. What is the payment term?

The payment term is 40% down payment, and 60% before delivery (T/T mode).

4. What is the delivery time?

The delivery time of the machine is 30-60 days after receipt of down payment.
